Vent Specifications

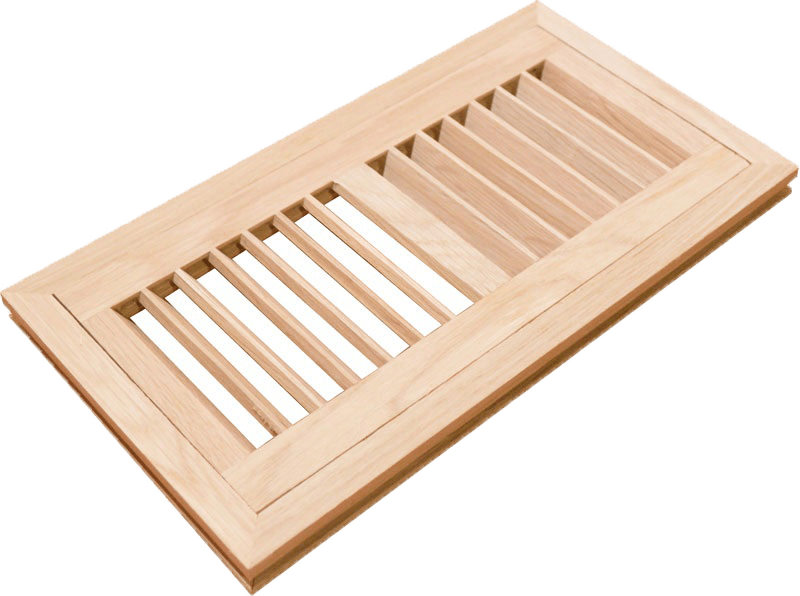

High Output Flush

• 30% More Air Flow
• Grooved Frame
• Easier Installation (No Parts extend below the frame)
• Integrated Slide Damper Available
• Beveled Bi-Directional Louvers
• Lifetime Warranty on ALL 10 Standard Sizes

**Integrated Air Flow Damper
Available for ALL 10 sizes!

FLUSH SIZES/AIRFLOW AREA
Duct/Hole Size Airflow Area (sq. in.)
3×10 19.25
4×10 26.25
4×12 30
4×14 33.75
2×10 14
2×12 16
2×14 18
6×10 42
6×12 48
6×14 54

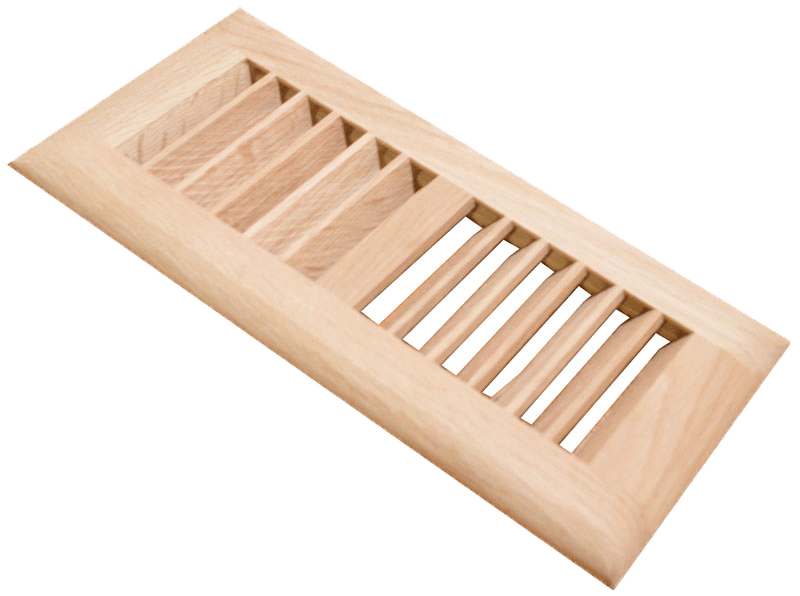

High Output Drop

• Damper Actuator recessed below vent surface
• Integrated Slide Damper Available
• Beveled Bi-Directional Louvers
• Lifetime Warranty
• Made In The USA.
• Easy Installation
• Beveled Louvers for Premium Fit & Finish

**Integrated Air Flow Damper
Available for ALL 10 sizes!

FLUSH SIZES/AIRFLOW AREA
Duct/Hole Size Airflow Area (sq. in.)
3×10 10.5
4×10 18
4×12 21
4×14 24
2×10 8.25
2×12 9.625
2×14 11
6×10 31.5
6×12 36.75
6×14 42

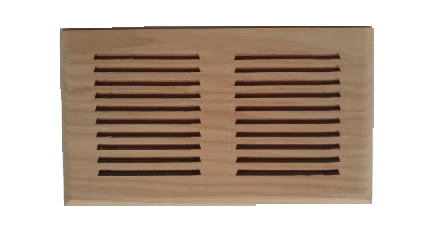

Wall Returns

Return/Wall vents have a flat bottom to rest on the floor with sides and top delicately rounded for a finished appearance. These vents are a full 3/4″ thick with Horizontal slots facing down.

Overall Size Duct Size
7” x 11 1/2” 6 x 10
7” x 13 1/2” 6 x 12
7” x 15 1/2” 6 x 14
7” x 21 1/2” 6 x 20
7” x 25 1/2” 6 x 24
7” x 31 1/2” 6 x 30
9” x 11 1/2” 8 x 10
9” x 13 1/2” 8 x 12
9” x 15 1/2” 8 x 14

Standard Species

FLUSH W/FRAME
Duct/Hole Size Overall Size
3×10 4 1/4″ x 11 3/16″
4×10 5 1/2″ x 11 3/16″
4×12 5 1/2″ x 13 3/16″
4×14 5 1/2″ x 15 3/16″
2×10 3 3/4″ x 11 3/16″
2×12 3 3/4″ x 13 3/16″
2×14 3 3/4″ x 15 3/16″
6×10 7 1/2″ x 11 3/4″
6×12 7 1/2″ x 13 3/4″
6×14 7 1/2″ x 15 3/4″
  • DOMESTIC
    RED & WHITE OAK
    MAPLE
    HICKORY
    ASH
    WALNUT
    R/Q OAK
    CHERRY
    PINE
  • Exotic
    BRAZILLIAN CHERRY
    TIGERWOOD
    SANTOS MAHOGANY
    CUMARU
    IPE
    ACACIA
FLUSH W/FRAME
Duct/Hole Size Overall Size
3×10 5 3/4″ x 12 1/2″
4×10 6 3/4″ x 12 1/2 “
4×12 6 3/4″ x 14 1/2″
4×14 6 3/4″ x 16 1/2″
2×10 5″ x 12 1/2″
2×12 5″ x 14 1/2″
2×14 5″ x 16 1/2″
6×10 9″ x 13″
6×12 9″ x 15″
6×14 9″ x 17″

Custom Vents

ALL CUSTOM VENTS ARE AVAILABLE IN SELF RIMMING DROP-IN OR FLUSH WITH GROOVED FRAME.

FLUSH MODEL VENTS COME COMPLETE WITH A 5/8” RABBITED FRAME.

Dampers are NOT Available for Custom Vents.

To Determine the Size of the vent you need, measure L x W

*Please Note* Custom Vents are Non-Returnable.

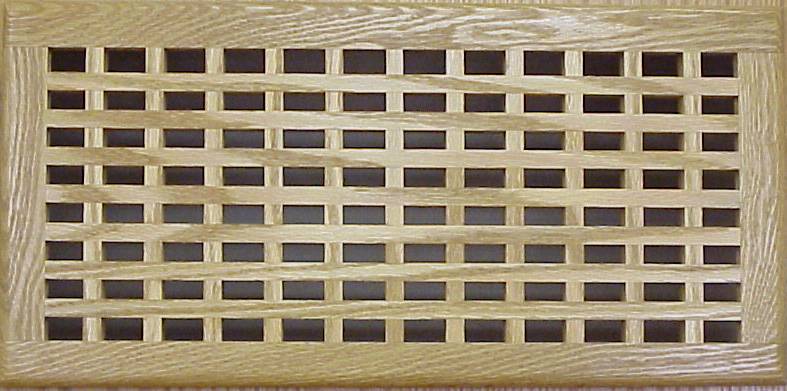

Eggcrate


Sidewall/Baseboard

Available Sizes
15” x 4-5/8” x 2-3/4”
18” x 4-5/8” x 2-3/4”
24” x 4-5/8” x 2-3/4”

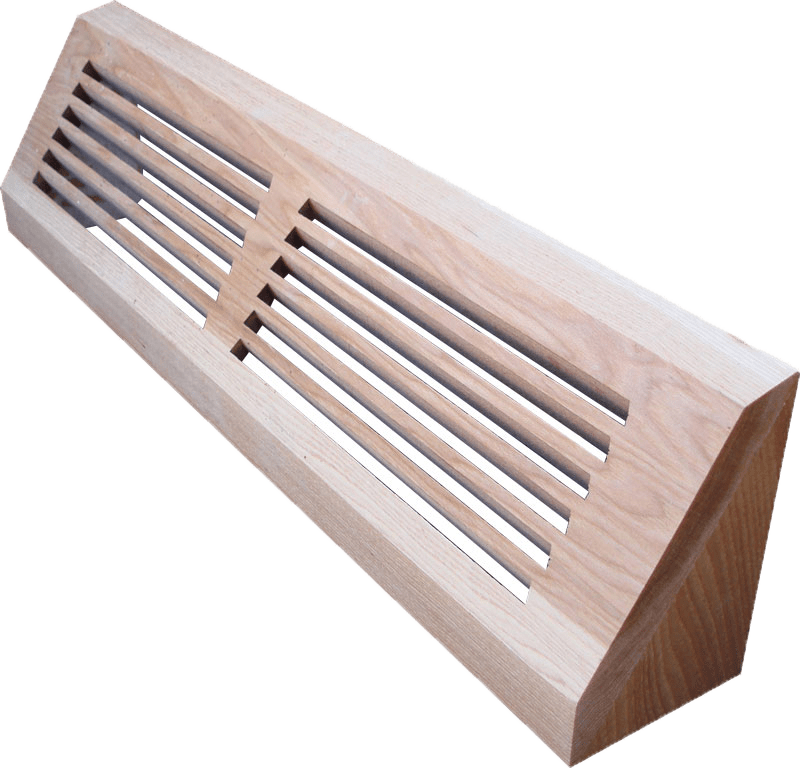

Horizontal

Louvered


Dampers & Finishes

INTEGRATED SLIDE DAMPERS

  • Metal with High Strength Industrial Black Coating
  • Easy Installation and Removal
  • Does not interfere with irregular sub-floor installations
  • Lifetime Warranty!

Natural

Gunstock

Butterscotch

Spice
